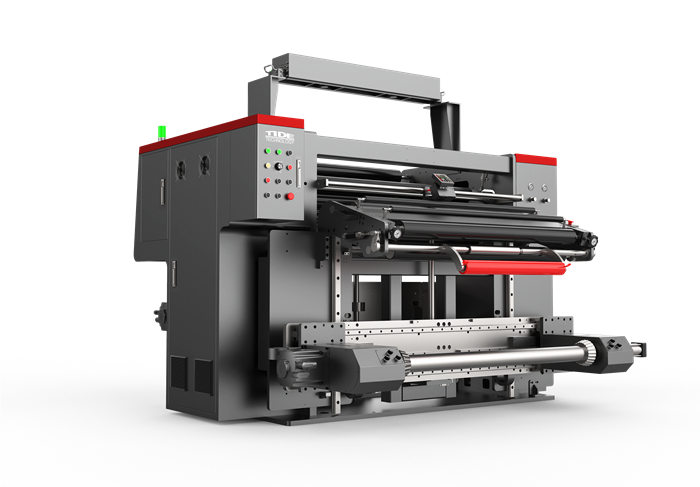

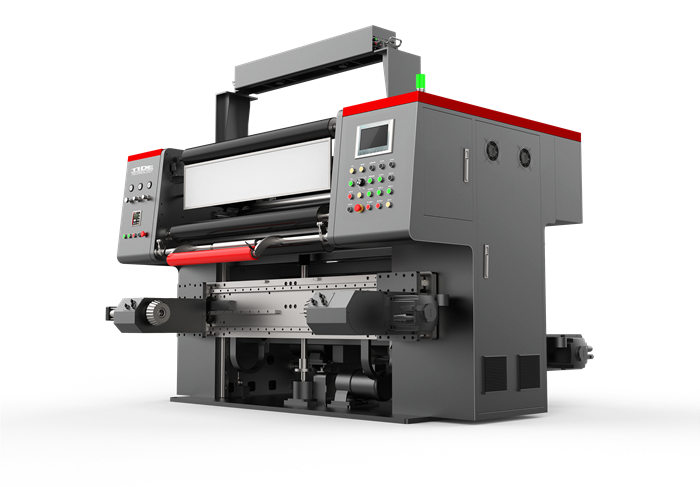

MR300 Digital Control Hi-speed Rewinder

CHARACTERISTICS
· Major for rewinding and inspecting film, paper and laminated film
· Separated tension control system
· Shaftless with air chucks for rewinding
· Maintenance information on touch screen
· Splicing table with nip bars to fix the material
· Servo driving system
· Center rewinding mode with gap roller
· Unwinding roll loading sami-automatically
· Self diagnosis
· Remote diagnosis and services

TECHNICAL DATA
Standard Option
· Width of working face: 1300mm 1300mm
· Diameter of rewinding: φ800mm φ1200mm
· Thickness of material: 12-150μm 6-120μm
· Diameter of rewinding: φ800mm φ1200mm
· Working speed: 300m/min(max) 400m/min(max)
OPTION
* Intergration of inspection system
* Trim edge slitting system
* Easy tear of line
* Air hole on line
* Stop by pictures accounting
* Link to ERP
* Unwinding width adjusting automatically
