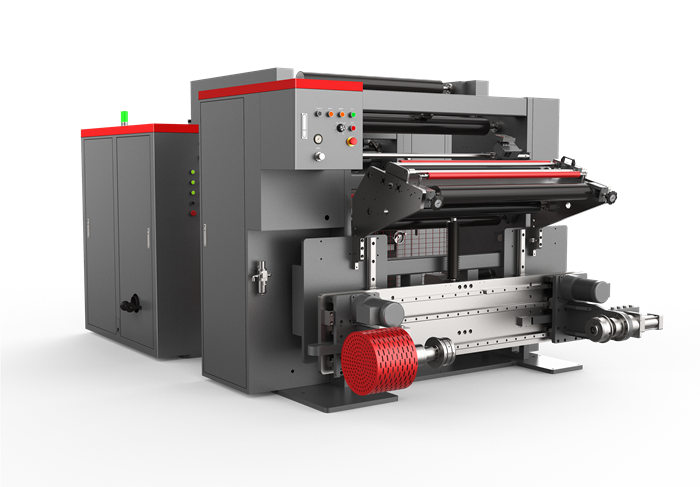

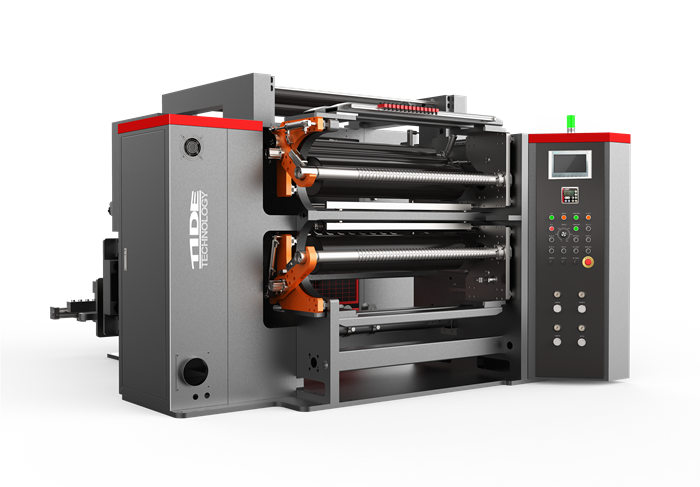

DS400 Digital Control Hi-speed Slitter

· Slitting for very shin or soft tension material(like capacitance film/battery diaphagm/battery aluminum soft film/aluminum foil)
· Reel loading automatically
· Unwinding width adjusting automatically
· Servo driving system

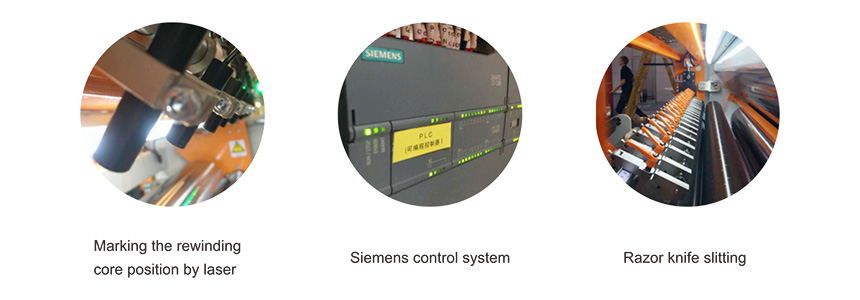

· Razor knife slitting
· Splicing table with nip bars to fix the material
· Separated tension control system
· Air shafts for rewinding
· Marking the rewinding core position by laser
· Self diagnosis
· Maintenance information on touch screen
· Remote diagnosis and services

Standard Option
· width of working face: 1050mm 1350mm
· Diameter of unwinding: φ800mm φ1000mm
· Thickness of material: 2μm-15μm 50μm-200μm
· Diameter of rewinding: φ400mm φ600mm
· Width of rewinding: 5mm(min) --
· Working speed: 400m/min(max) 500m/min(max)
* Expander roller
* Wave slitting mode for special material
* Unloading the finished rolls automatically
* Air friction shafts rewinding
* Circle knife slitting mode
* 6 inch rewinding mode
* Link to ERP
